Iteration 2:

Welcome to E-Level!

Overview

Progress

One feature of E-Level has been implemented. The design has been more thoroughly fleshed out, with corresponding corrections to the UML class diagram, the creation of a UML component diagram, and the prioritization of use cases and features to implement.

Resources

Subclipse has been added to the list of resources to be used during the project. The original list can be seen on the page for Iteration 1.

Class Proposal

Part of the progress has been the creation of code outlines. View the Javadoc.

Feature List

All features ordered from most to least important.

Implemented:

  • A splash screen *New

Implemented Next Iteration:

  • Reviewable cards with a front and an associated back, containing the solution
  • Custom deck creation
  • The ability to view different decks
  • The ability to organize, combine, and modify decks
  • Shuffling a deck of cards
  • The ability to download existing uploaded sets
  • Card-based annotations and hints
  • Export utilities for professors

Implemented in Future Iterations:

  • Test-taking functionality
    • The ability to view the solution first
    • Repeating incorrect answers with higher probability through some algorithm
  • A timer to track study periods
  • Support for printing
  • User-dependent preferences for localization, other features *New
  • Deck-dependent score reporting, including graphing
  • The "E-Level Challenge", a quiz of all incorrect cards in the last week from any deck
  • Image and graphic support
  • A "New Card Wizard" with:
    • Support for drag-n-drop
    • Numerous plugins for foreign languages, advanced drawing options, and math. *New
    • Customizable card properties
  • 6 demo decks
  • Audio, video, and multimedia support

Use Cases

All use cases ordered from most to least important.

Select Directory

Completion Goal: Iteration 3
Actor: Professor or Student
Goal: Select a directory containing decks or in which to store decks
Preconditions: The user has opened the program
Main Path:

  • At startup, a dialog is displayed to choose where to store/find decks (à la Eclipse)
  • The user selects a directory to contain or to store decks
    • The user creates a new directory in which to store decks
  • The user clicks OK

Create Deck

Completion Goal: Iteration 3
Actor: Professor or Student
Goal: The user creates a new E-level flash card deck
Preconditions: The user has opened the program
Main Path:

  • The user clicks the create new deck button or selects File > New > Deck
  • The user creates a new flash card and adds it to the deck (see Create Flash Card)
  • The user repeats step 2 as desired
  • The user clicks the save deck button
    • The deck is saved in the currently selected directory or the default directory if none is selected
  • (optional) The user clicks export deck (see Export Deck)
  • The user returns to the default screen

Create Flash Card

Completion Goal: Iteration 3
Actor: Student or Professor
Goal: The user creates a new E-level flash card and adds it to a pre-existing deck
Preconditions: The user has opened the program and selected a deck
Main Path:

  • The user clicks the add new card button or selects File > New > Card
  • An Edit Card window is displayed and the user edits the card (see Edit Card)
  • The card is added to the currently selected deck and the Edit Card window is closed

Export Deck

Completion Goal: Iteration 3
Actor: Professor or Student
Goal: The user exports a deck for distribution
Preconditions: The user has selected a deck
Main Path:

  • The user selects File > Export > Deck and is presented with the Export Deck Wizard window
  • The user chooses a file name and location, and indicates whether the deck should be uploaded to an online repository (tentative)

Study

Completion Goal: Iteration 3
Actor: Student
Goal: The user studies a deck of E-level flash cards
Main Path:

  • The user opens the program and enjoys the splash screen
  • The deck list is populated from a previously specified or the default deck directory
  • The user selects a deck to study from the deck list
    • The user selects a card from the card list under the currently selected deck
  • The first card in the deck is displayed
    • The user selects a card from the card list
  • The default card view with the card's front face, back face, additional information, and hint is displayed
    • User clicks the edit card button (see Edit Card)
  • The user clicks the next card button until reaching the end of the deck or the previous card button until reaching the start of the deck
    • The user repeats steps 3-6 as many times as desired
  • The user closes the program

Take Flash Card Test

Completion Goal: Iteration 4
Actor: Student
Goal: The user takes a practice test using E-level flash cards
Preconditions: The user has opened the program and selected a deck
Main Path:

  • The user clicks the take test button
  • The user is presented with the front face of a flash card and prompted for a pre-programmed answer
    • The user clicks the hint button to bring up a hint
      • The user may or may not close the hint popup
  • The user specifies an answer or clicks continue if answer is optional
  • The user views the back of the flash card and any additional information
    • The program indicates whether the response was correct
    • The user indicates whether the response was correct
  • The user repeats steps 2-4 until reaching the end of the deck
  • The user exits the test
  • A display is shown with test statistics for the current and past tests

E-Level Challenge

Completion Goal: Iteration 4
Actor: Student
Goal: The user takes a test of previously missed questions
Preconditions: The user has gotten one or more questions wrong on a test in the previous week
Main Path:

  • The use clicks the Take E-Level Challenge button
  • A list of incorrectly answered test cards from the previous week is retrieved and used for the following flash card test
  • The user is presented with the front face of a flash card and prompted for a pre-programmed answer
    • The user clicks the hint button to bring up a hint
      • The user may or may not close the hint popup
  • The user specifies an answer or clicks continue if answer is optional
  • The user views the back of the flash card and any additional information
    • The program indicates whether the response was correct
    • The user indicates whether the response was correct
  • The user repeats steps 3-5 until reaching the end of the deck
  • The user exits the test
  • A display is shown with test statistics for the current and past tests

Edit Flash Card

Completion Goal: Iteration 4 or 5
Actor: Student or Professor
Goal: The user edits an existing E-level flash card
Preconditions: The user has opened the program, selected a deck, selected a card, and clicked edit OR the user is creating a new card in the selected deck
Main Path:

  • A new window is shown with panels for sections of the flash card (front face, back face, additional information, hint, and “answer” section) and toolbars for adding information to them
    • (optional) The user enters text
    • (optional) The user drags and drops images and (tentatively) other multimedia sources
    • (optional) The user undos or redos previous actions
  • The user clicks the done button

UML Diagrams

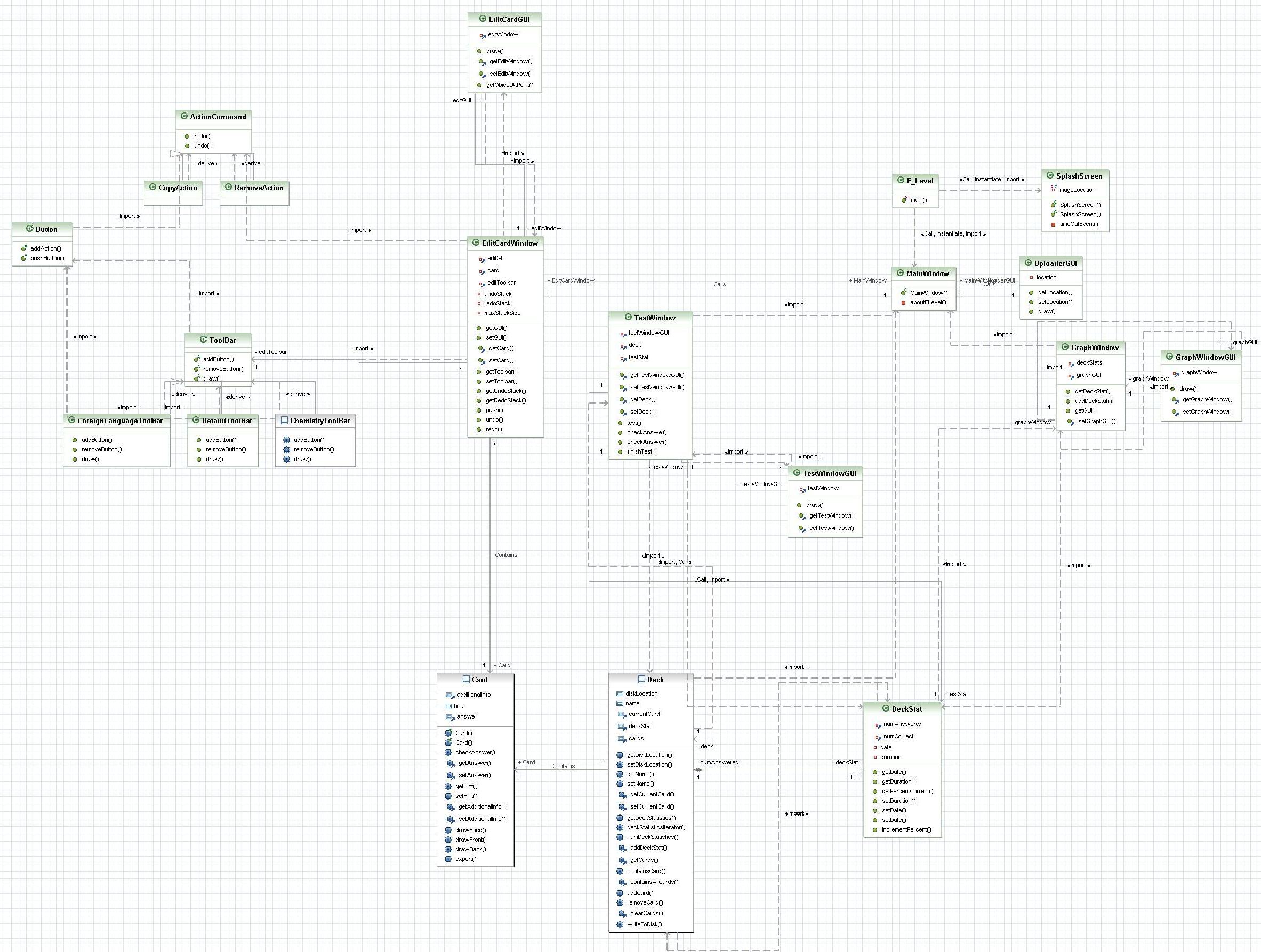

Our improved class diagram:

Download it here.

E-Level Class Diagram

A sample sequence diagram:

Download it here.

E-Level Sequence Diagram

Our component diagram:

Download it here.

E-Level Component Diagram

GUI

An improved GUI sketch:

Download it here.

Note that it will not look like this in other OSes. The layout will be the same, but the styling will be slightly different.

E-Level GUI Sketch
